Outros robôs Comau arc welding cell with 2 double axis positioners

Awaiting more stock

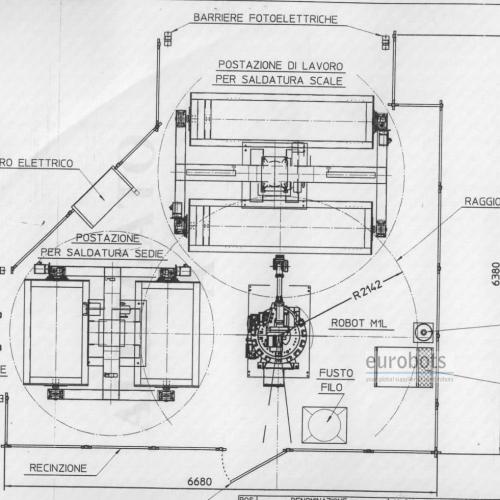

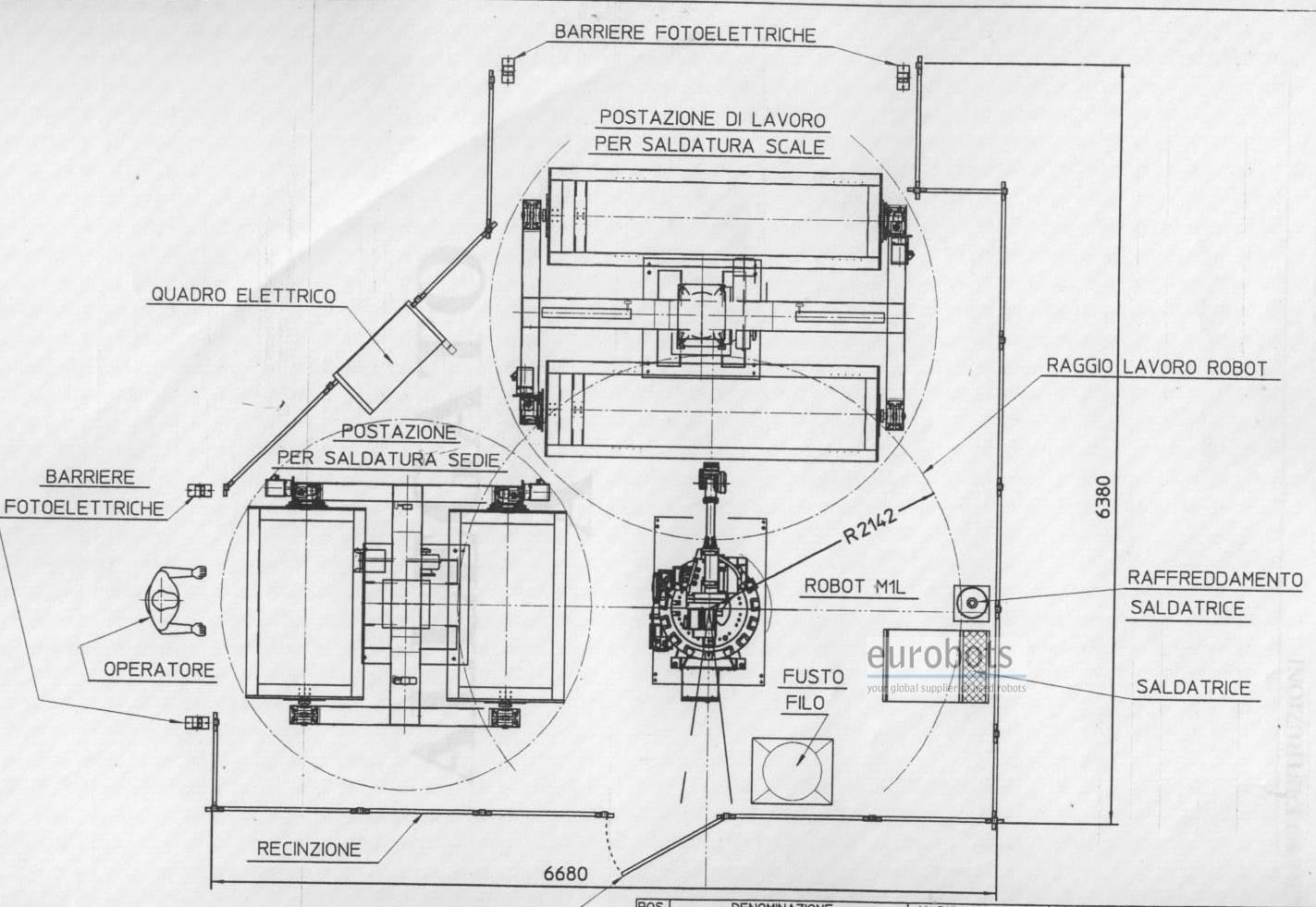

Comau arc welding cell (mft in 2002) consisting of

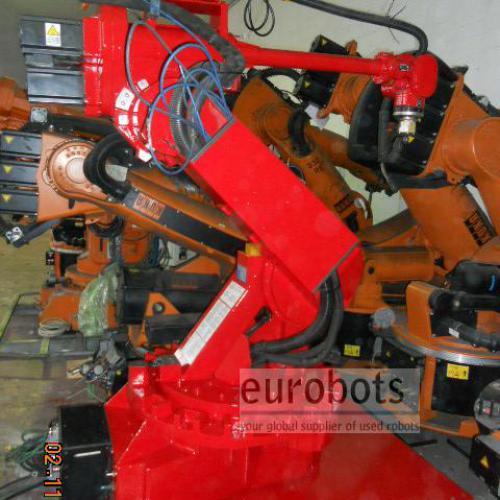

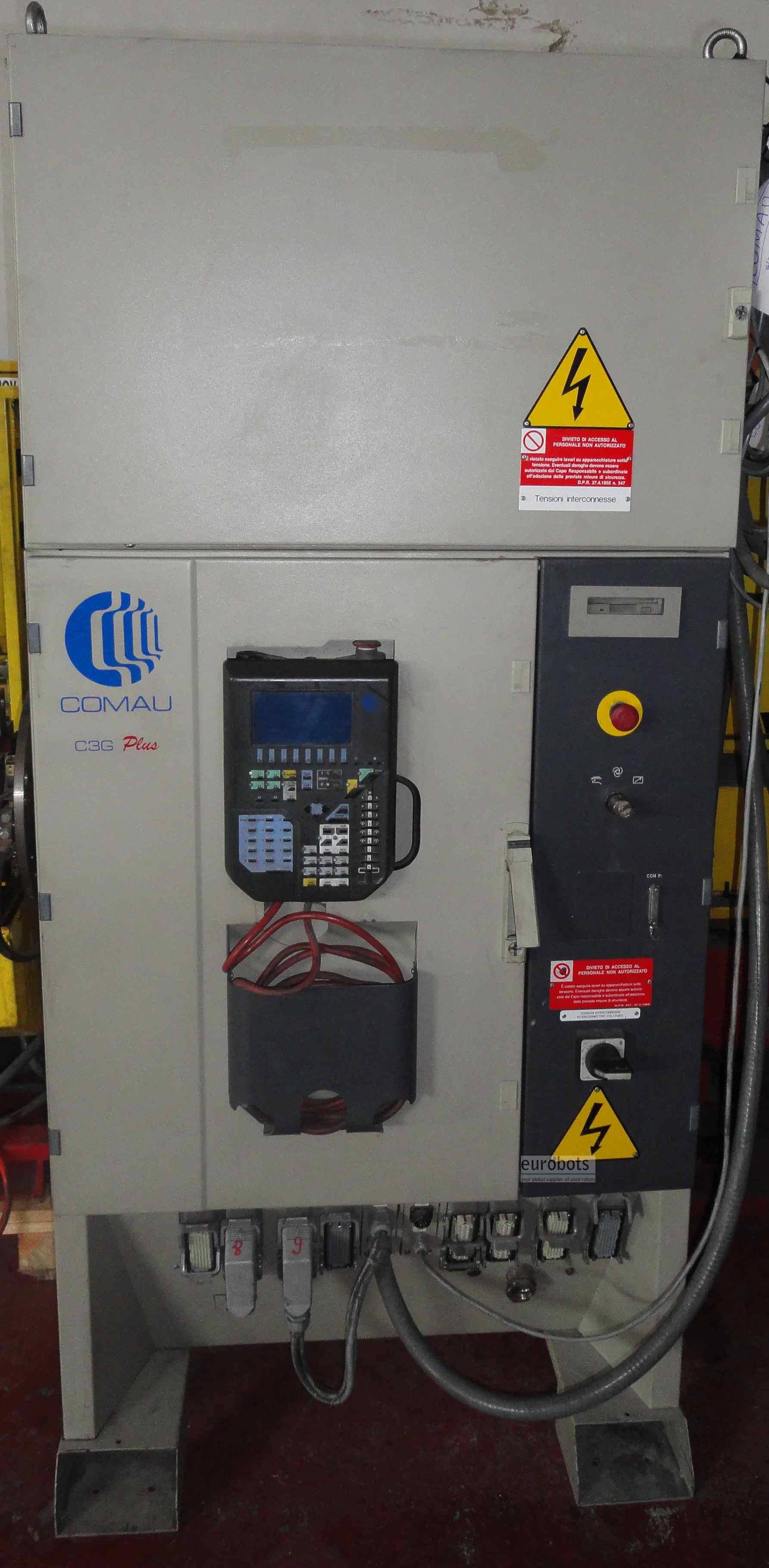

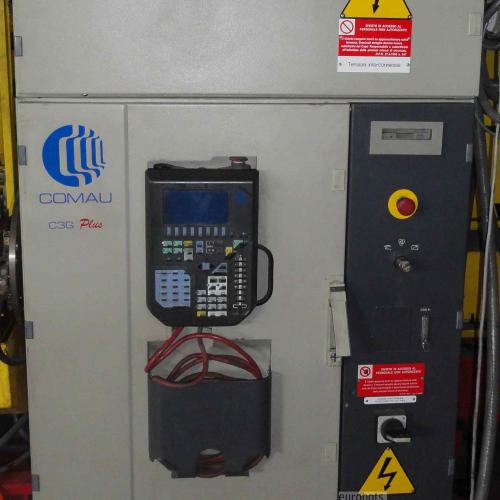

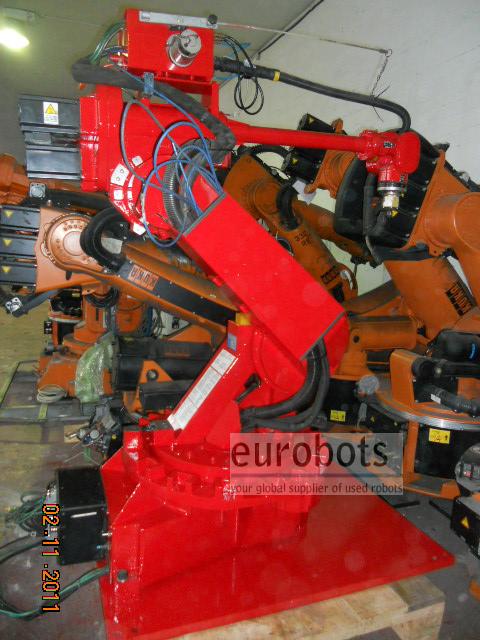

- Comau 6 axis industrial robot model Smart-M1L, 2142 mm arm reach with C3GPlus controller

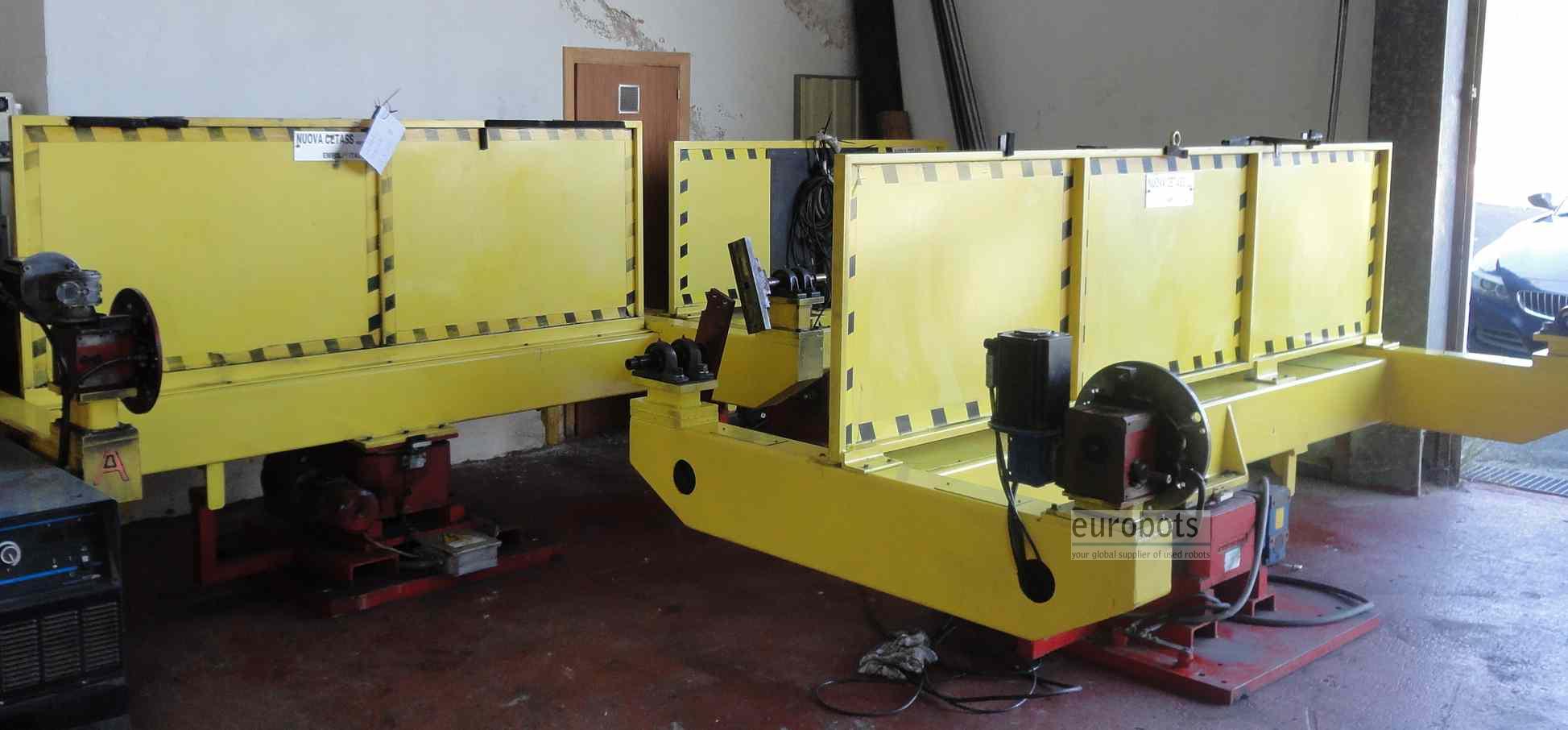

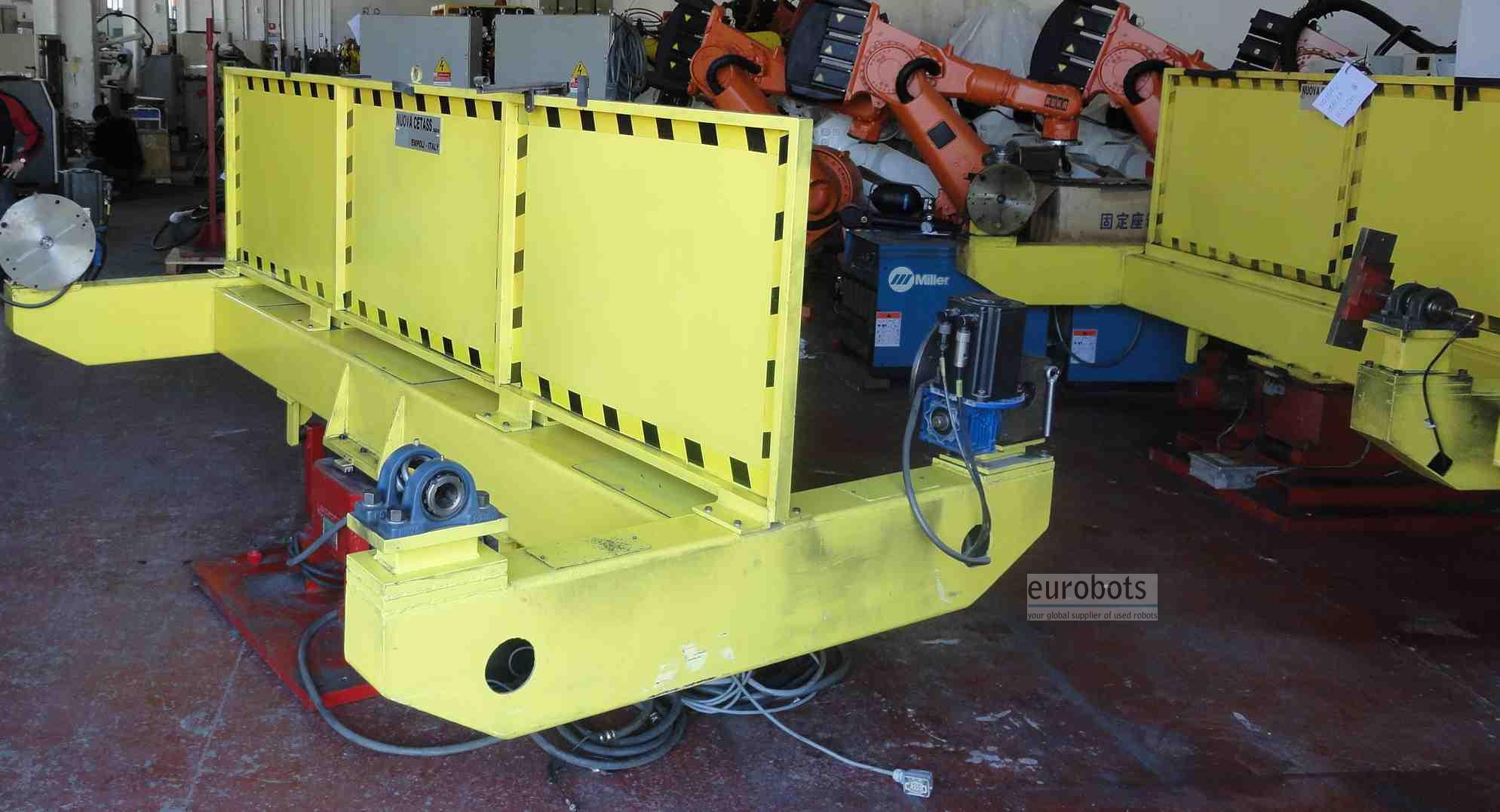

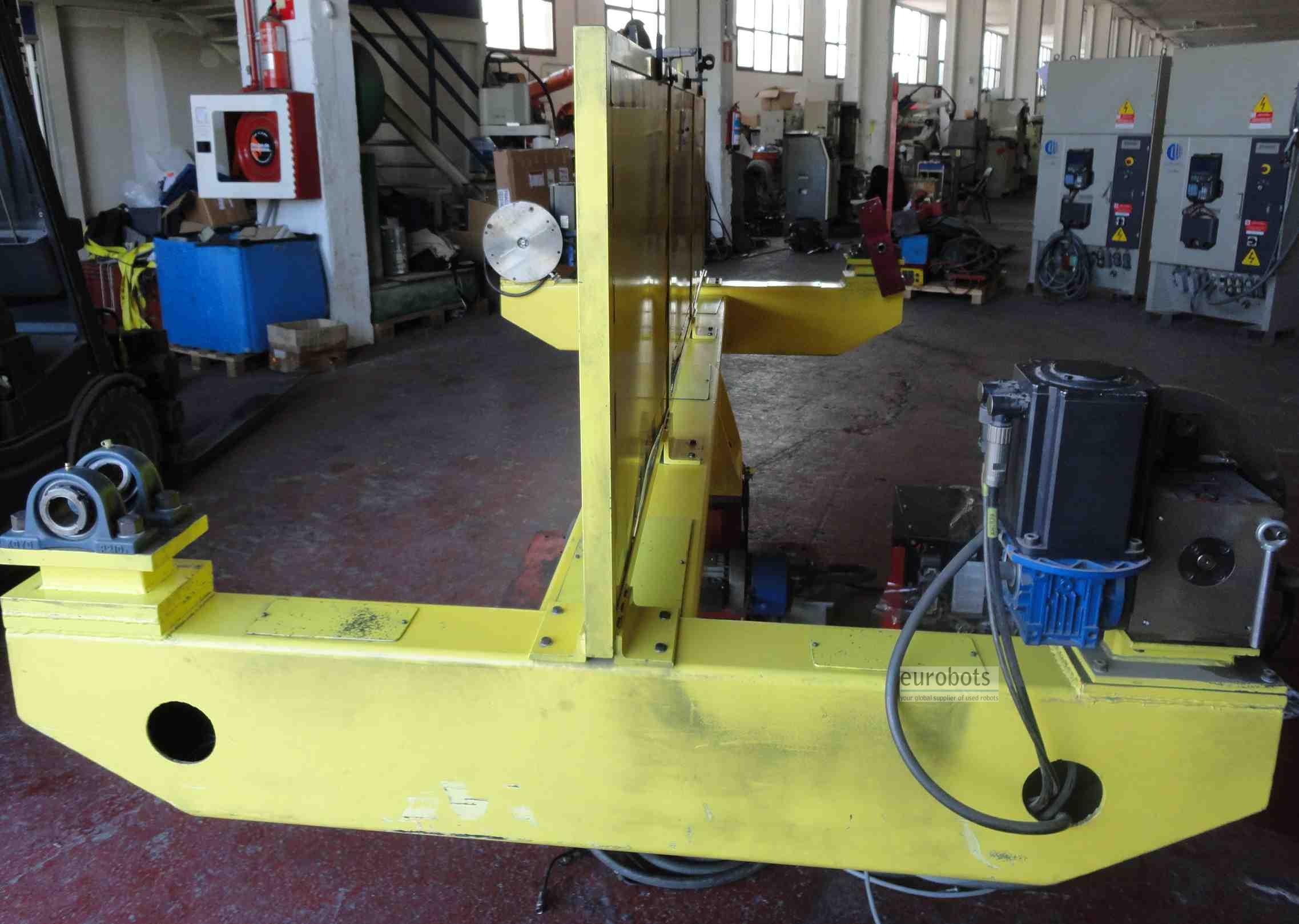

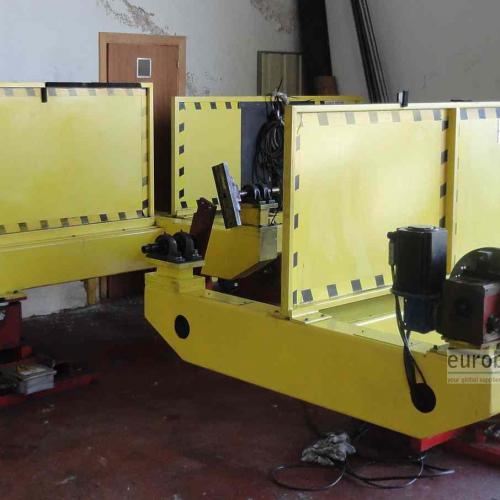

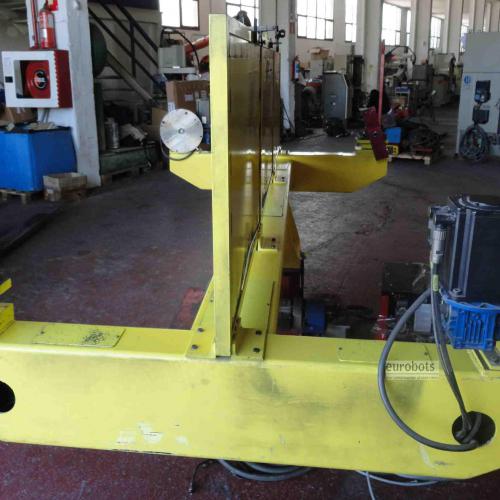

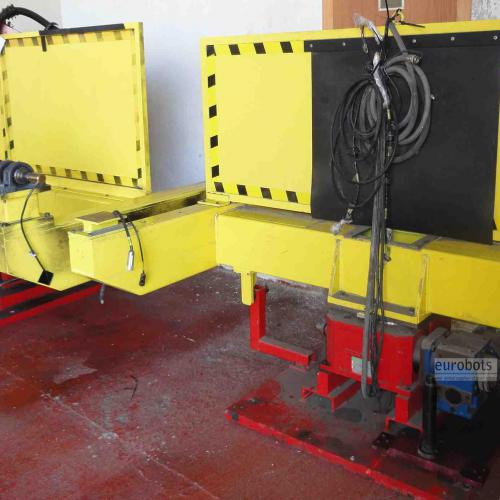

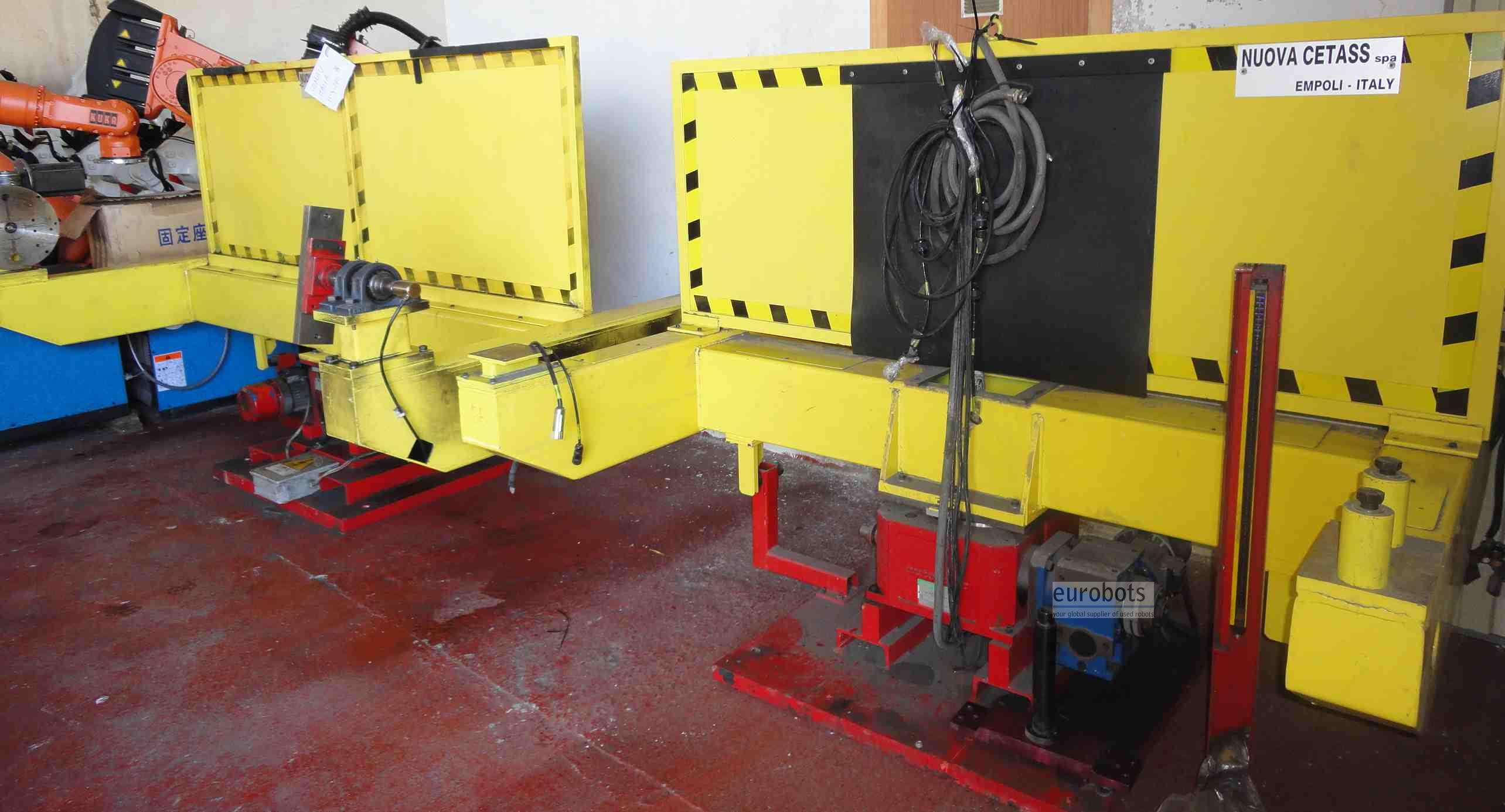

- 2 x 2 axis servocontrolled positioners. Both of them are 2 axis with a central 180 degrees rotation to switch loading/unloading station.
1st positioner: Model PTDV 2x250x3000x1000 has a distance of 3000 mm between head and tailstock and a payload of 250 kg
2nd positioner: Model PTDV 2x150x1600x1000 has a distance of 1600 between head and tailstock and a payload of 150 kg
Arc welding equipment

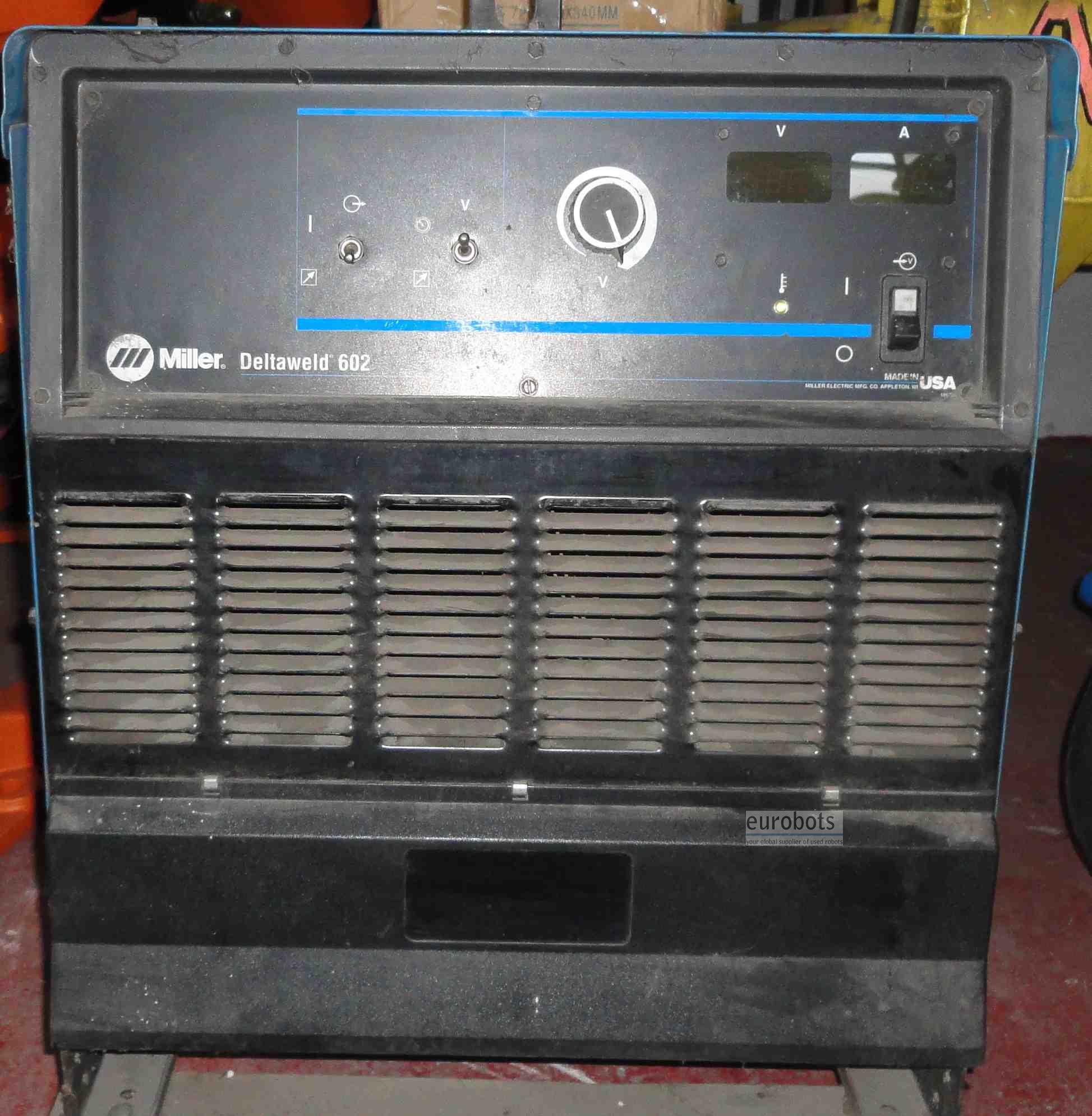

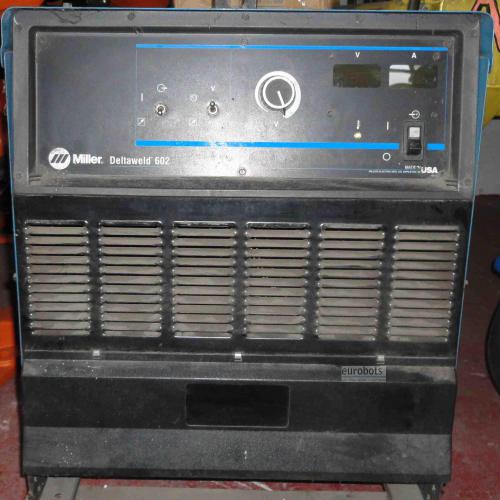

- Miller Deltaweld 602 (600 Amperes) arc welding power source, watercooled.
- Binzel arc welding torch with anticolision
- Torch cleaning station
Photoelectric safety curtains SICK C-2000

-


Funções

Soldagem a arco
