Outros robôs Reis arc welding robot on 7t axis track with double servocontrolled positioner

Awaiting more stock

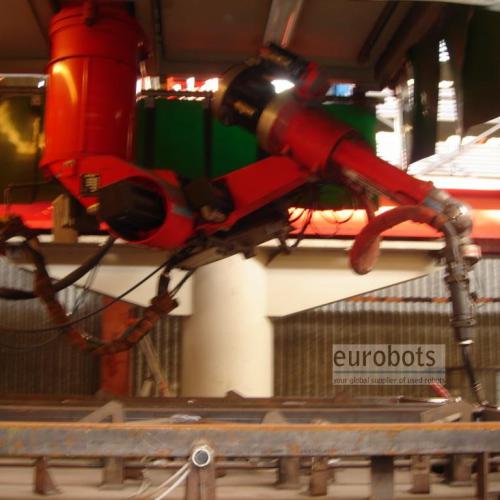

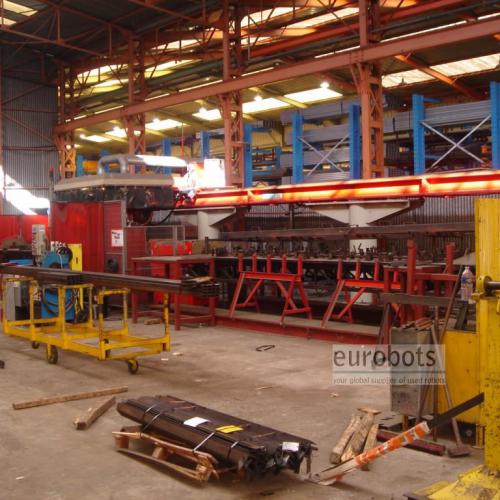

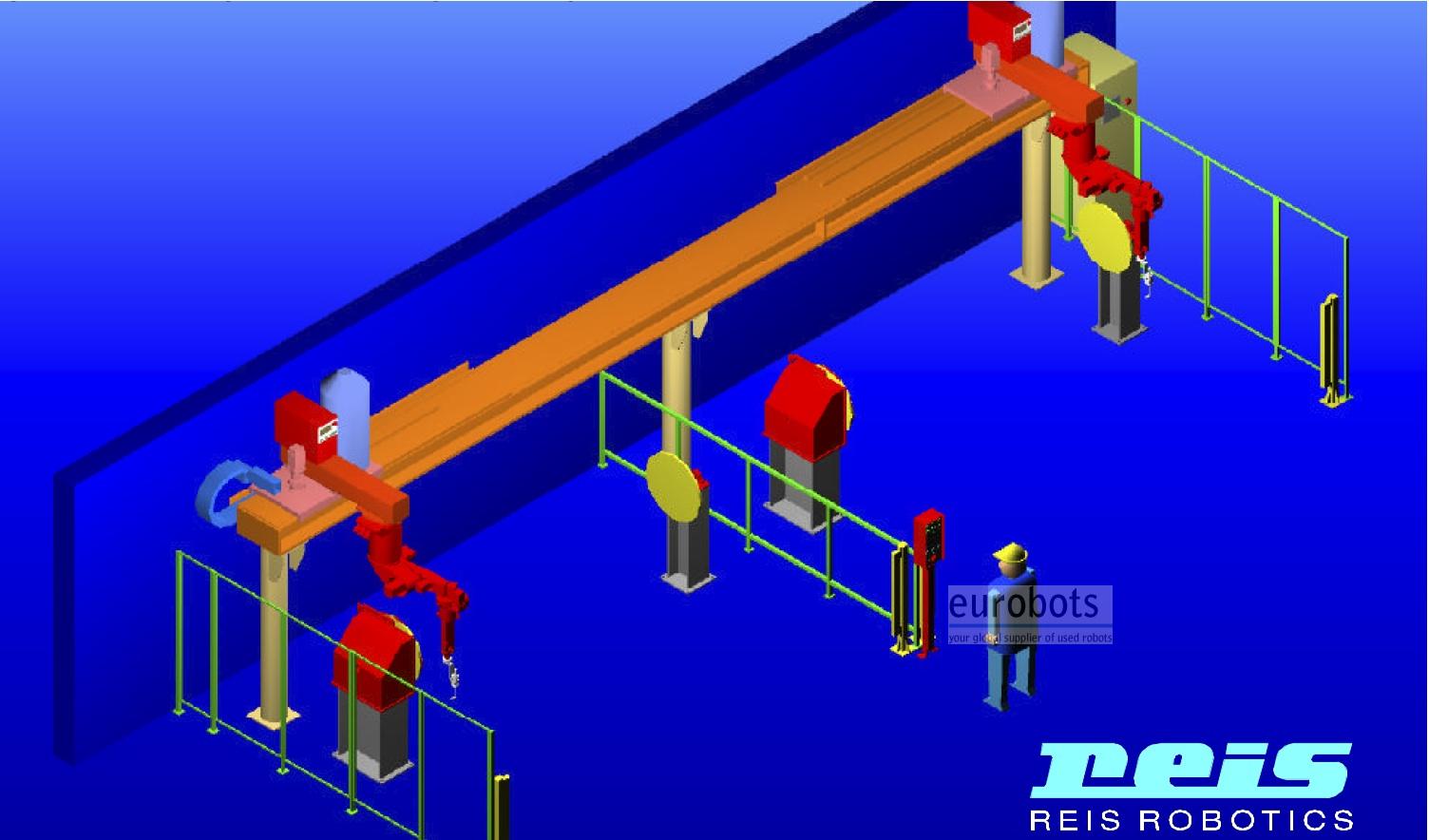

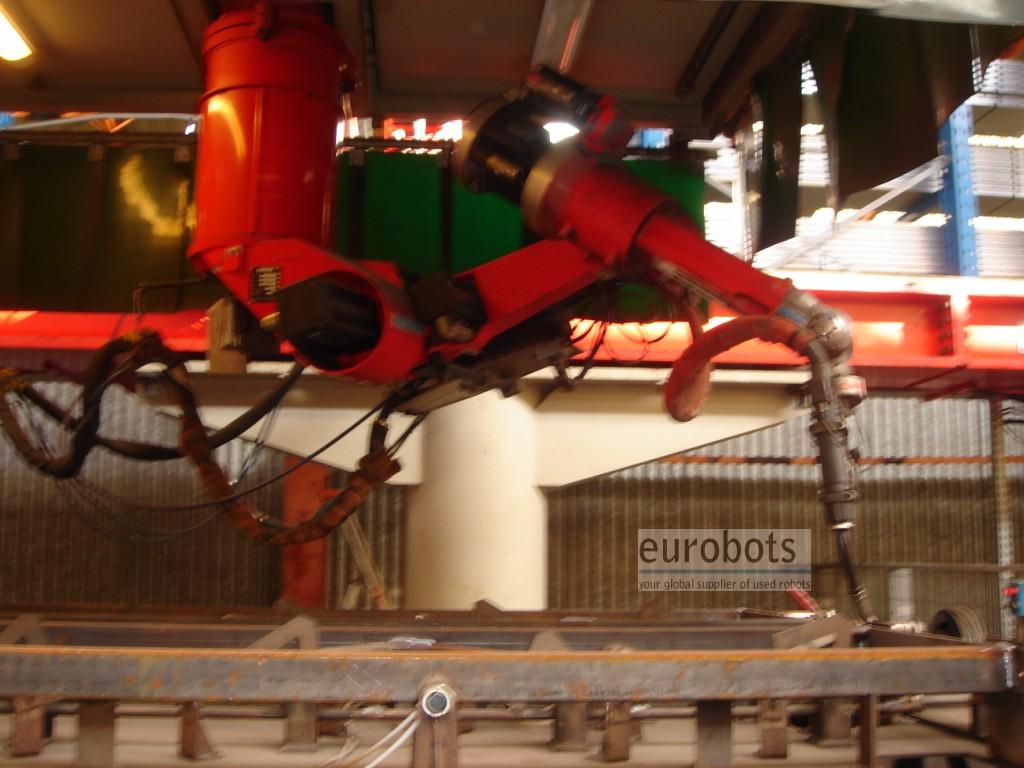

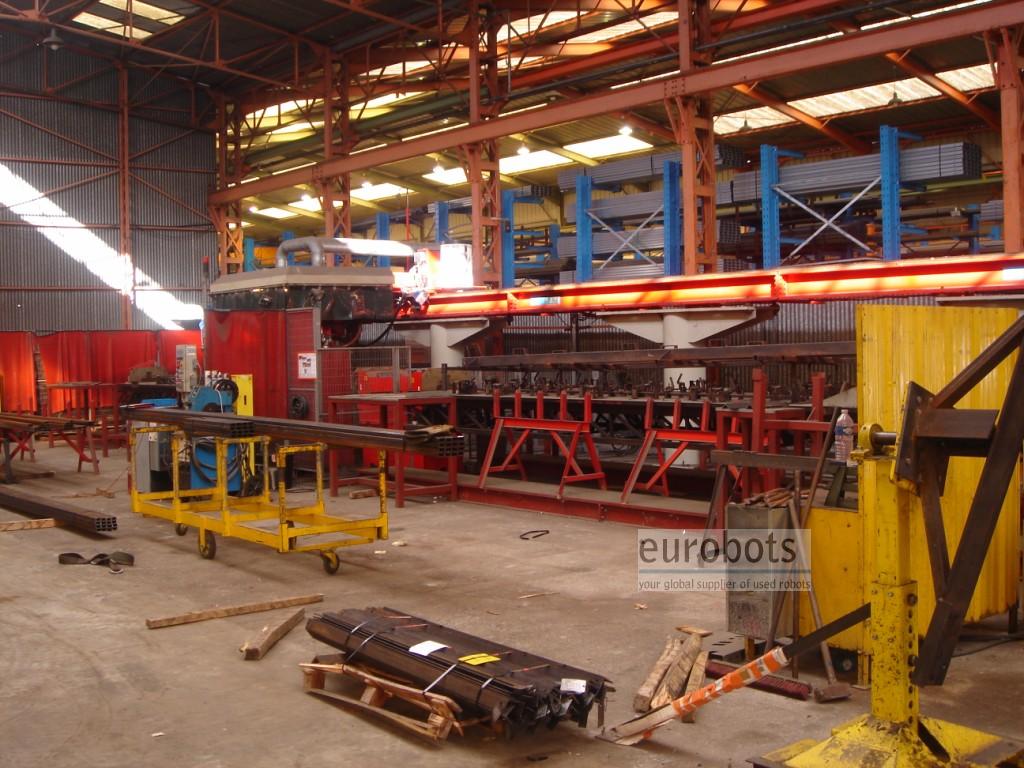

Year 2002. 6 axis industrial robot Reis type SRV6 (Robotstar V controller) suspended on a 17 m hub linear track. Two 1 axis servocontrolled positioners 8 m length (head-tailstock) along the track with a nominal payload of 2500 kg each.

These two positioners make each alternatively load and unload stations for the welding process.

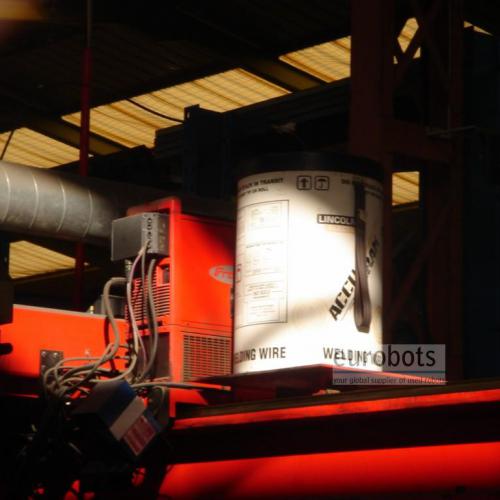

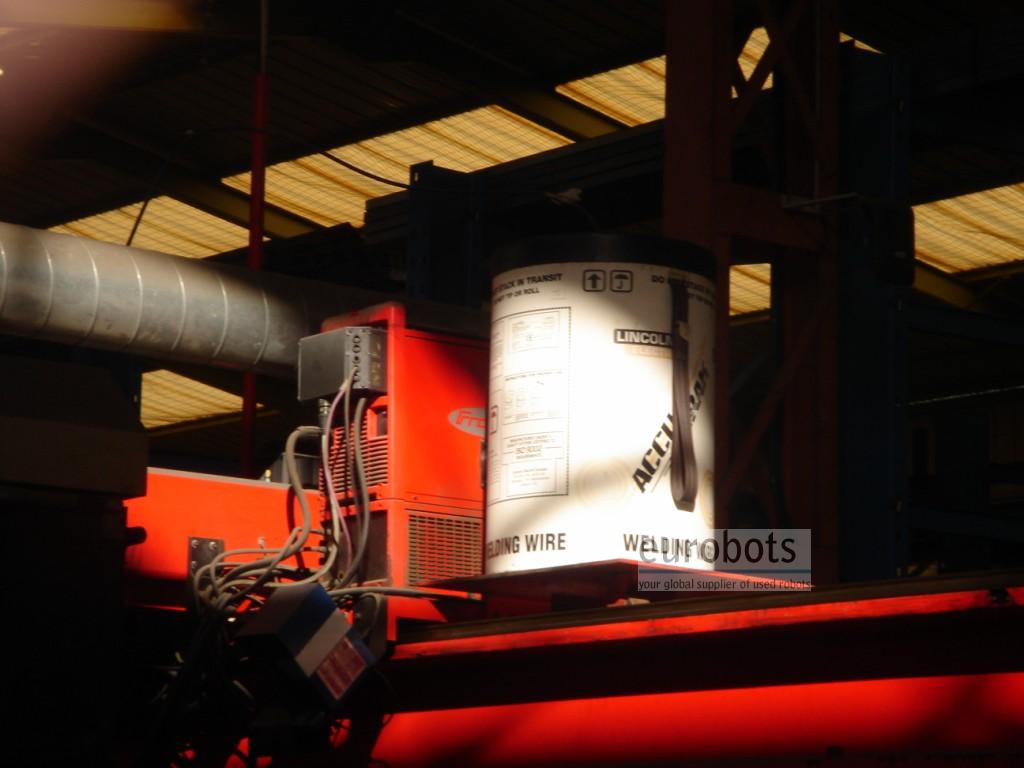

The robot is equipped with a Fronius TPS4000 synergic power source, water-cooled, 400 A. The whole system is completed with a torch cleaning station.

This sytem is ideal for welding parts of 7,5 m lenght max.

-


Funções

Soldagem a arco

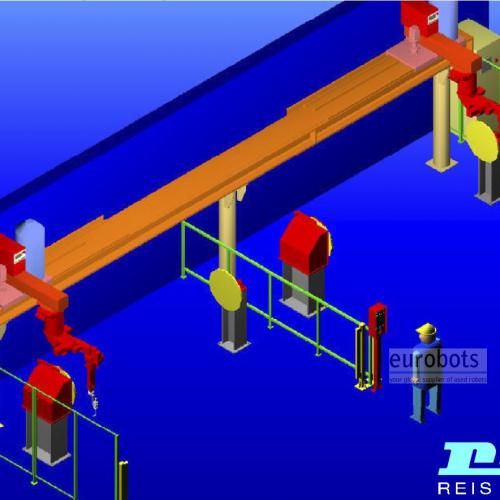

Diagramas
