Outros robôs RX60BL CS8M controle

Awaiting more stock

The RX60 series industrial robots feature an articulated arm with 6 degrees of freedom for high flexibility. The spherical work envelope allows maximum utilization of cell workspace. Additional benefits are the floor, wall and ceiling mount options.
The fully enclosed structure of the robot arm (IP65) is ideal for applications in harsh environments. The specially designed wrist (IP67) resists cutting chips and is ideal for machine tool environments.

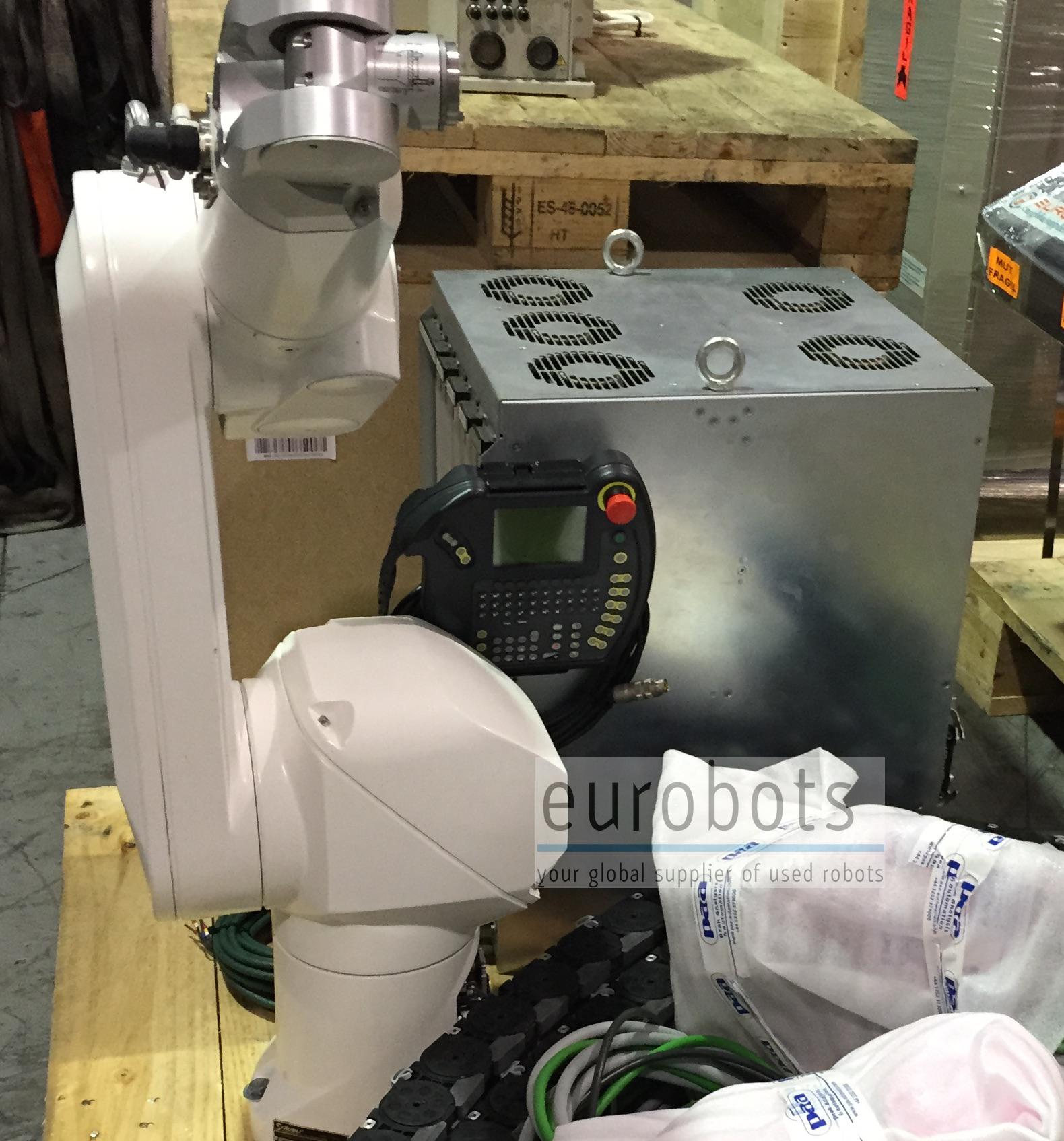

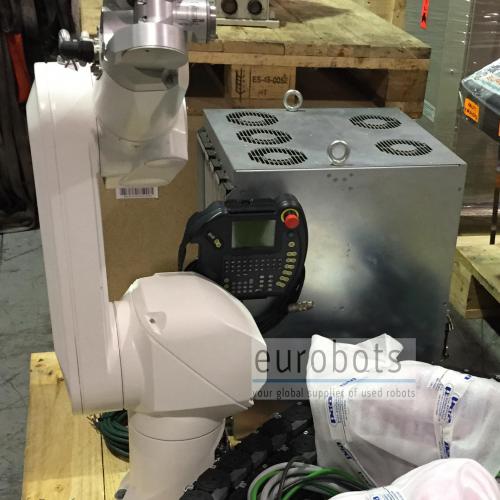

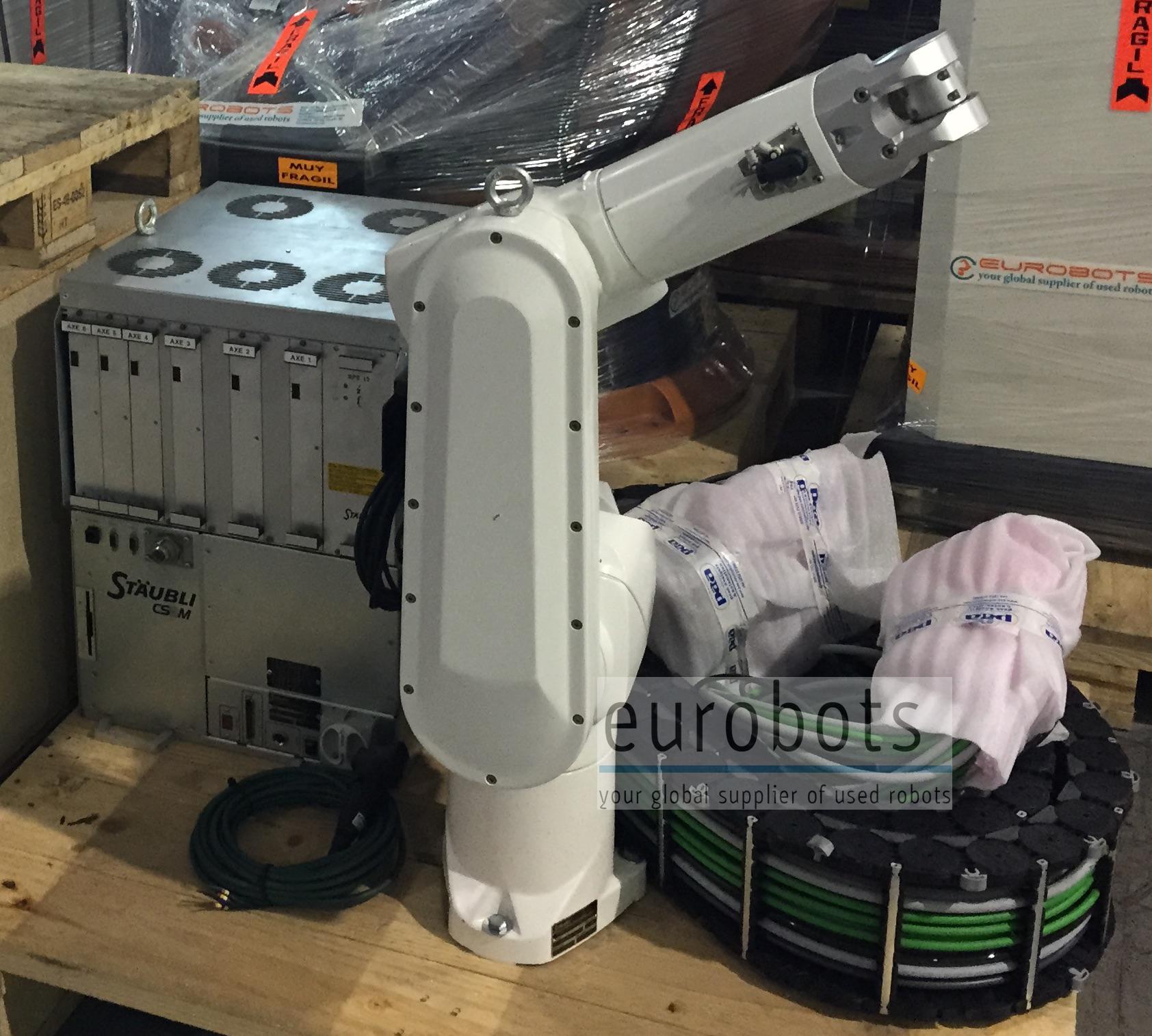

Equipped with the CS8M (modular) controller

CS8 controller features

Benefits

  • Ethernet, field bus, digital inputs/outputs, serial connections
  • Open architecture
  • Easy to install anywhere
  • IP54 industrial version
  • Compactness
  • All connections on front panel
  • Accessibility
  • 100 % digital technology


General features

  • Dimensions: H x L x D: 1000 x 600 x 715 mm
  • Protection class: IP54
  • Memory capacity: 64 MB RAM ( min.)
  • Memory storage: 64 MB (min.) Flash Disk
  • System/ Programming language: VAL 3 (multitask interpreted language)
  • PLC-IEC 61131-3 language
  • Communication: RS232/422 serial link - Ethernet Modbus server
  • Inputs / Outputs (I/O): 16/16 digital inputs/ outputs and/or 32/32 digital inputs/outputs, optional
  • Field bus: DeviceNet, Profibus, CANopen, Modbus



Robot Info

    •    Number of axis: 6
    •    Maximum Load of Robot: 1.5 Kg
    •    Maximum Reach: 865 mm
    •    Repeatability: +-0,02 mm
    •    Controller: CS8C

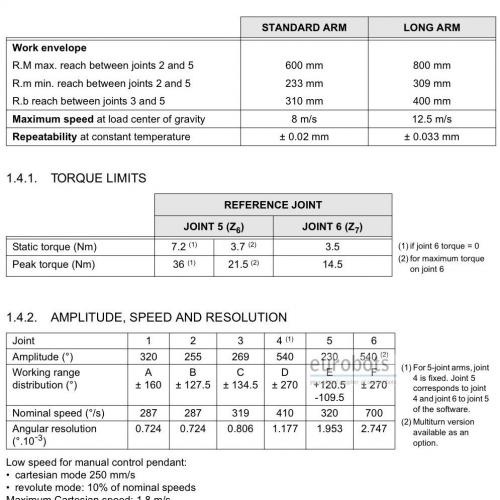

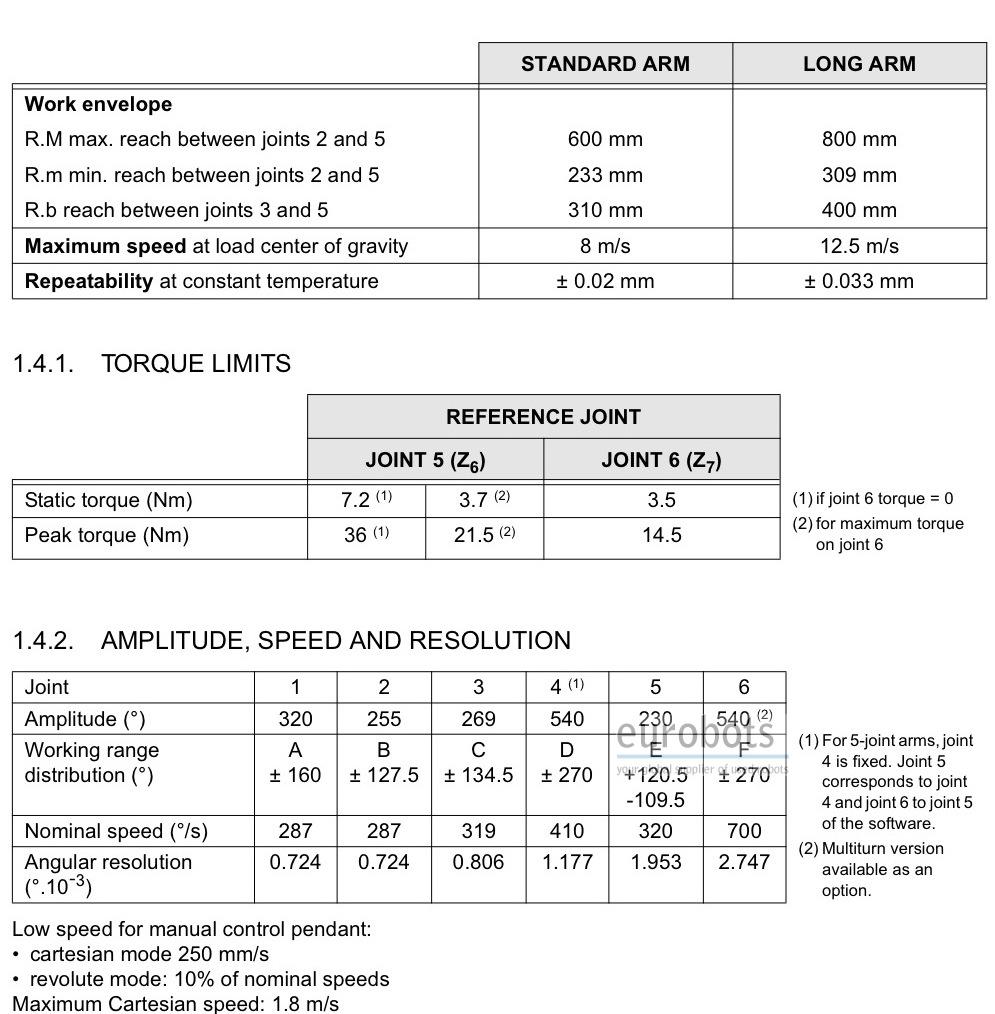

Robot Motion Speed

    •    Axis 1: 287º/s
    •    Axis 2: 287º/s
    •    Axis 3: 319º/s
    •    Axis 4: 410º/s
    •    Axis 5: 320º/s
    •    Axis 6: 700º/s

Robot Applications

    •    Pick and place
    •    Assembly


Funções

Carga e descarga de peças , Montagem de peças

Fotos

Vídeo

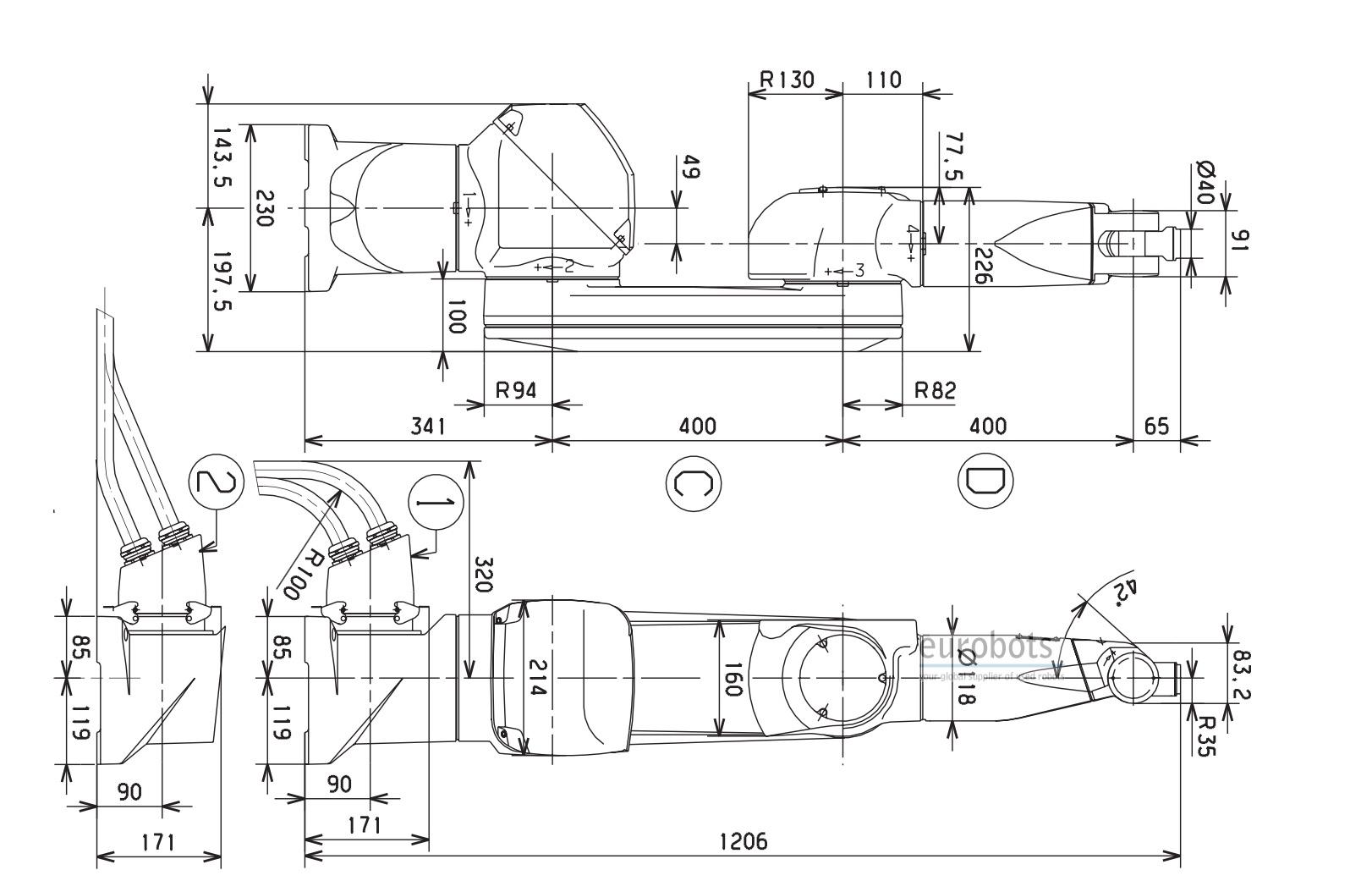

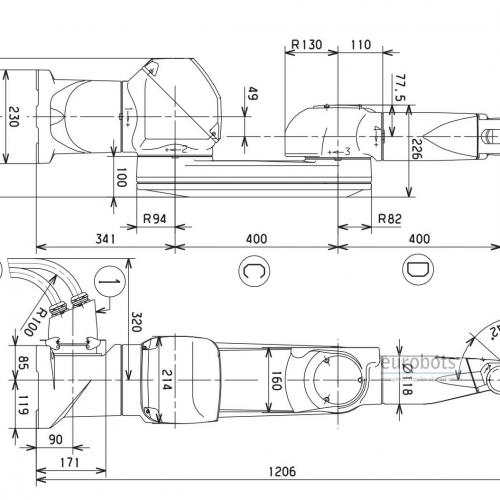

Diagramas
