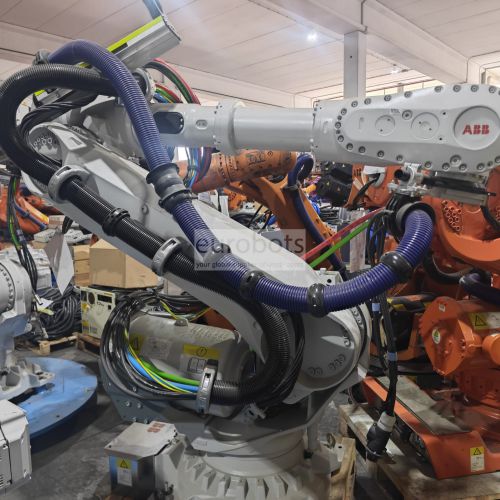

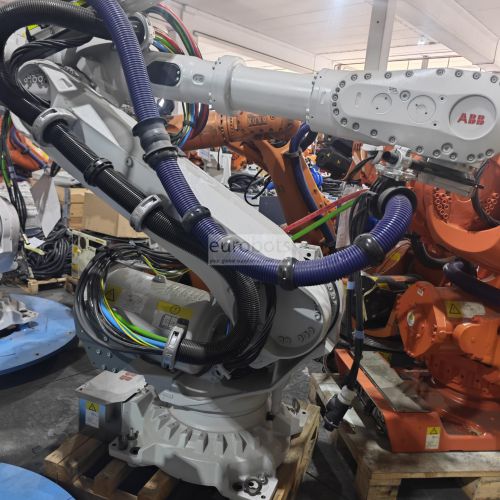

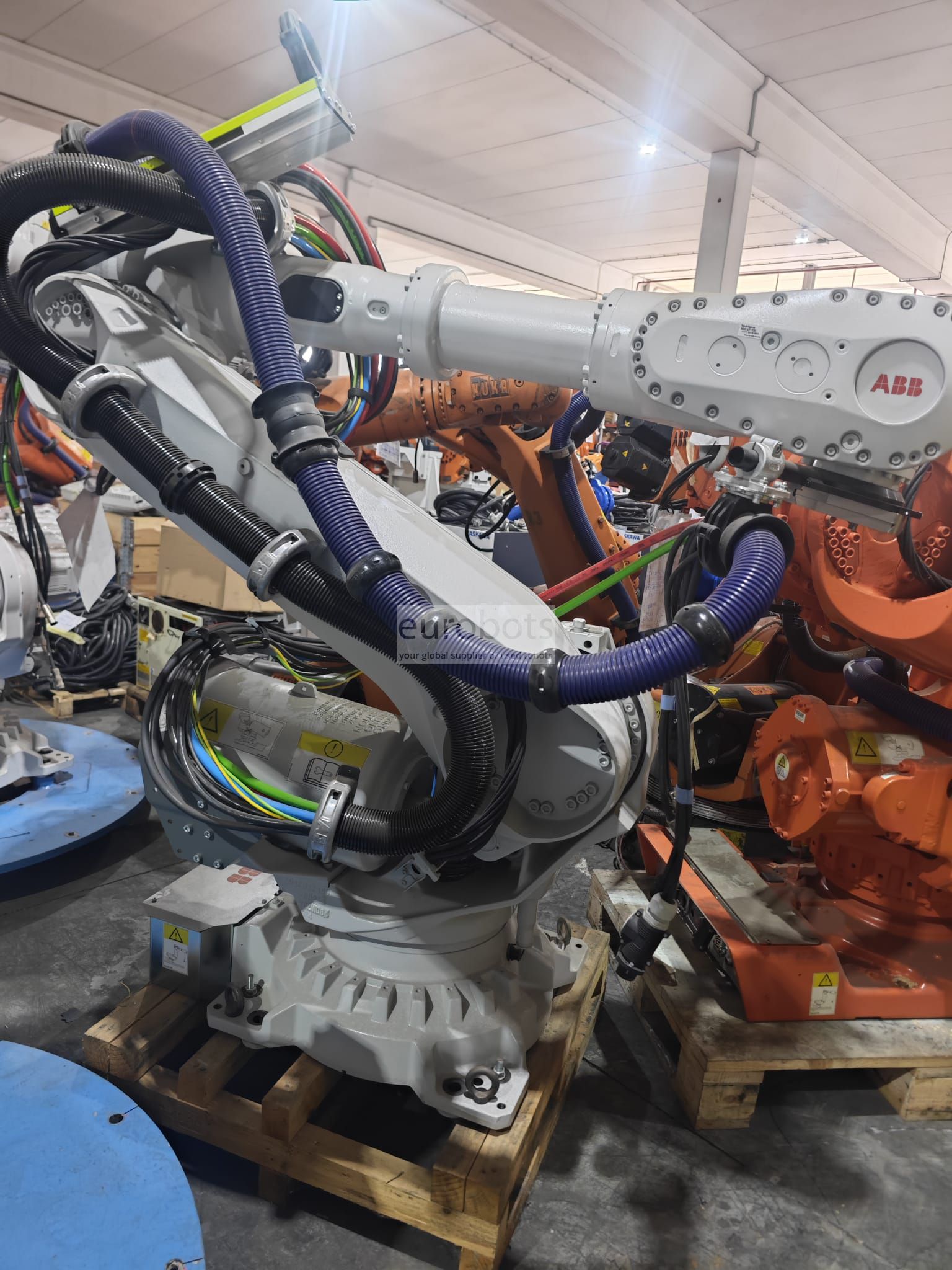

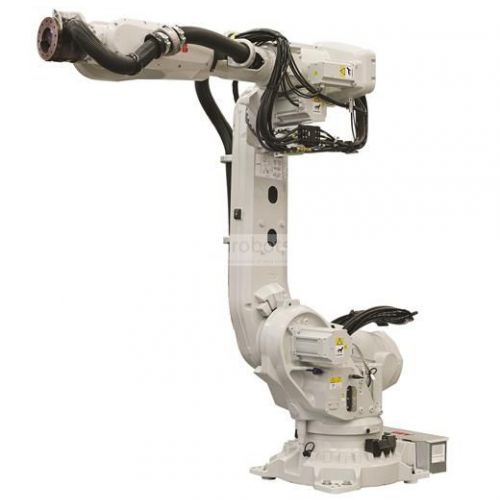

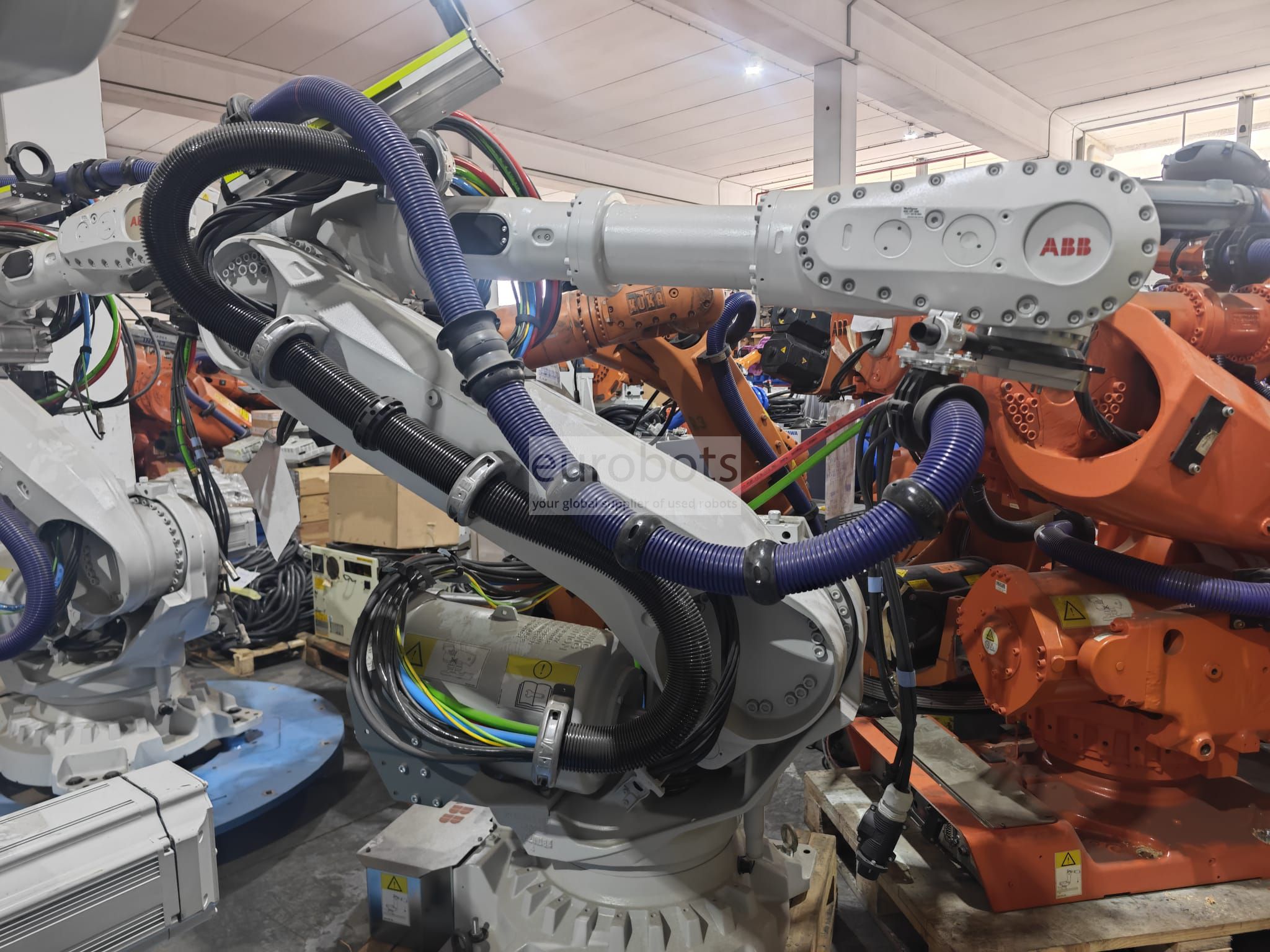

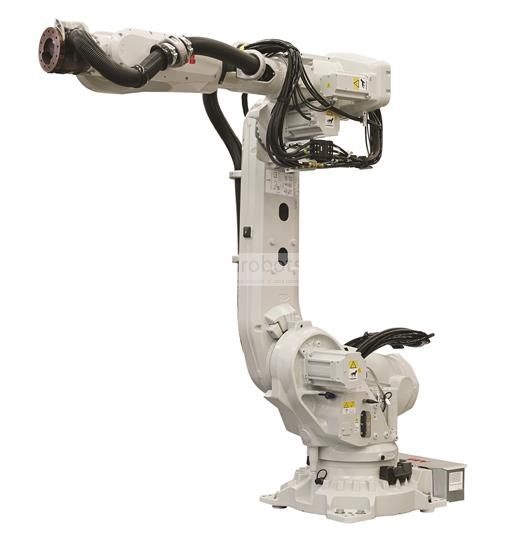

ABB IRB 6700

Awaiting more stock

Informações
Especificações

O robô IRB 6700 faz parte da sétima geração de robôs ABB com várias melhorias com um projeto mais rígido que obtém uma redução de 20% no custo total de propriedade, maior precisão, ciclo curto de tempo, manutenção mínima, proteção ideal para operar em ambientes hostis disponível na Foundry Plus 2 e uma capacidade de carga de 150 a 300 quilos, proporcionando alto desempenho e maior eficiência. Esta geração traz 10 modelos versáteis. Equipado com o controlador IRC5.

Main specifications

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Maximum Load of Robot	200 kg	155 kg	235 kg	205 kg	175 kg	150 kg	300 kg	245 kg	300 kg	245 kg
Maximum reach	2600 mm	2850 mm	2650 mm	2800 mm	3050 mm	3200 mm	2700 mm	3000 mm	2600 mm	2900 mm
Number of axis	6	6	6	6	6	6	6	6	6	6
Position repeatability RP	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm	0.10 mm
Path repeatability RT	0.06 mm	0.12 mm	0.08 mm	0.12 mm	0.08 mm	0.12 mm	0.14 mm	0.07 mm	0.22 mm	0.10 mm
Controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller	IRC5 Single cabinet, IRC 5 Panel mounted controller

Range of motion

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Axis 1	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°	+170° to -170°
Axis 2	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°	+85° to -65°
Axis 3	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°	+70° tp -180°
Axis 4	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°	+300 to -300°
Axis 5	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°	+130 to -130°
Axis 6	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°	+360 to -360°

Robot motion speed

Robot version	IRB 6700- 200/2.60	IRB 6700- 155/2.85	IRB 6700- 235/2.65	IRB 6700- 205/2.80	IRB 6700- 175/3.05	IRB 6700- 150/3.20	IRB 6700- 300/2.70	IRB 6700- 245/3.00	IRB 6700 Inv-300/2.60	IRB 6700 Inv-245/2.90
Axis 1	110°/s	110°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s	100°/s
Axis 2	110°/s	110°/s	90°/s	90°/s	90°/s	90°/s	88°/s	88°/s	88°/s	88°/s
Axis 3	110°/s	110°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s	90°/s
Axis 4	190°/s	190°/s	170°/s	170°/s	170°/s	170°/s	140°/s	140°/s	140°/s	140°/s
Axis 5	150°/s	150°/s	120°/s	120°/s	120°/s	120°/s	110°/s	110°/s	110°/s	110°/s
Axis 6	210°/s	210°/s	190°/s	190°/s	190°/s	190°/s	180°/s	180°/s	180°/s	180°/s

Robot Applications

Material handling

Spot welding

Funções

Soldagem a arco , Spotwelding , Assistência à imprensa , Paletização , Carga e descarga de peças , Manuseio de peças , Medição , Montagem de peças
